Flex Cine Dimmer

Next Gen Flexible LED Controller

• Control any Flex Cine Bi-Color or Daylight Mat up to 100W
• Dimmer for original Flex 1x1’ and 1x2’ Mats using a legacy adapter
• Adjust intensity and color temperature between 2800-6000K
• Intuitive local controls with digital display
• Includes AC power adapter and removable shoulder strap
• Compatible with most 14.4V to 26V V-Mount batteries
• Ability to store 4 custom presets when using Flex Bi-Color Mats

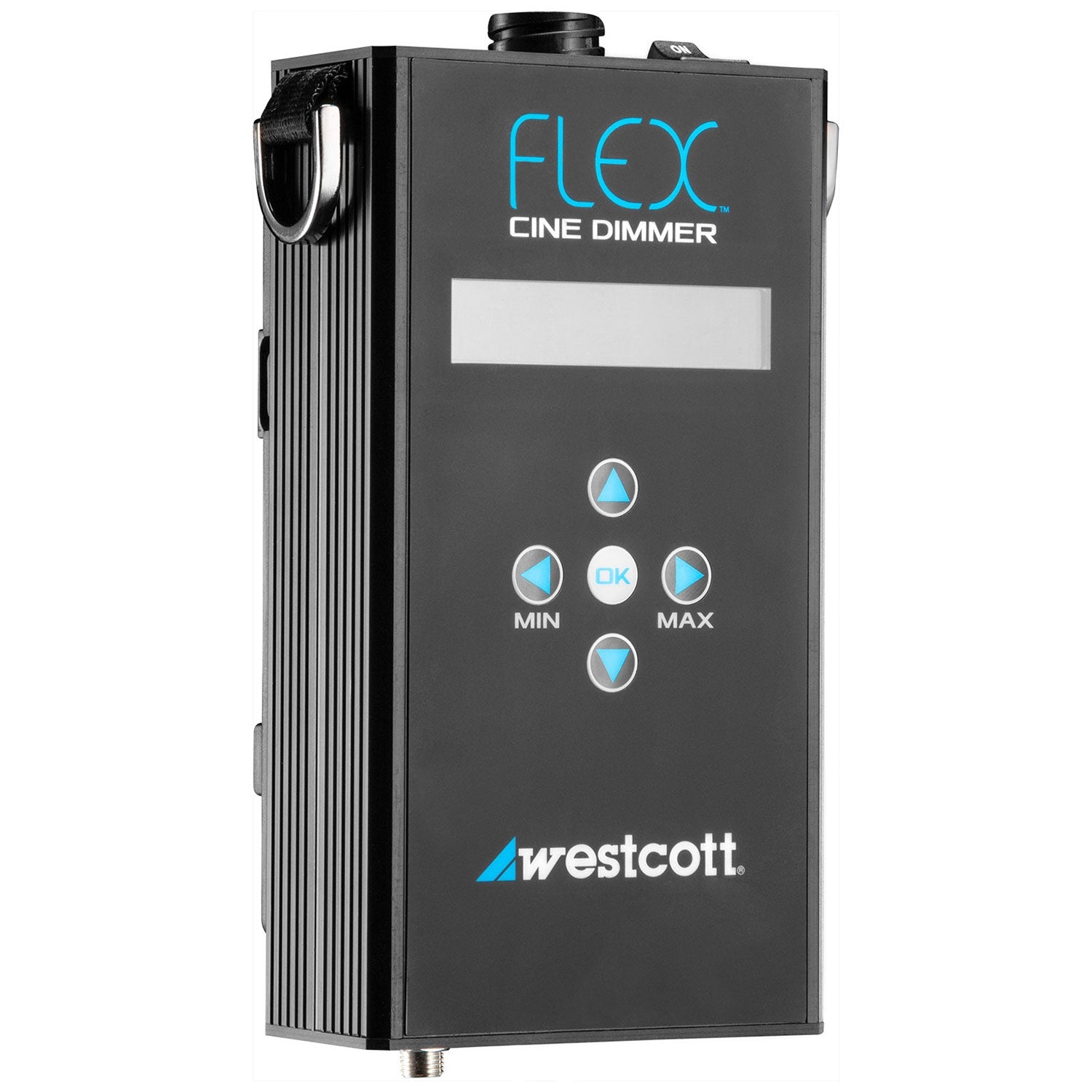

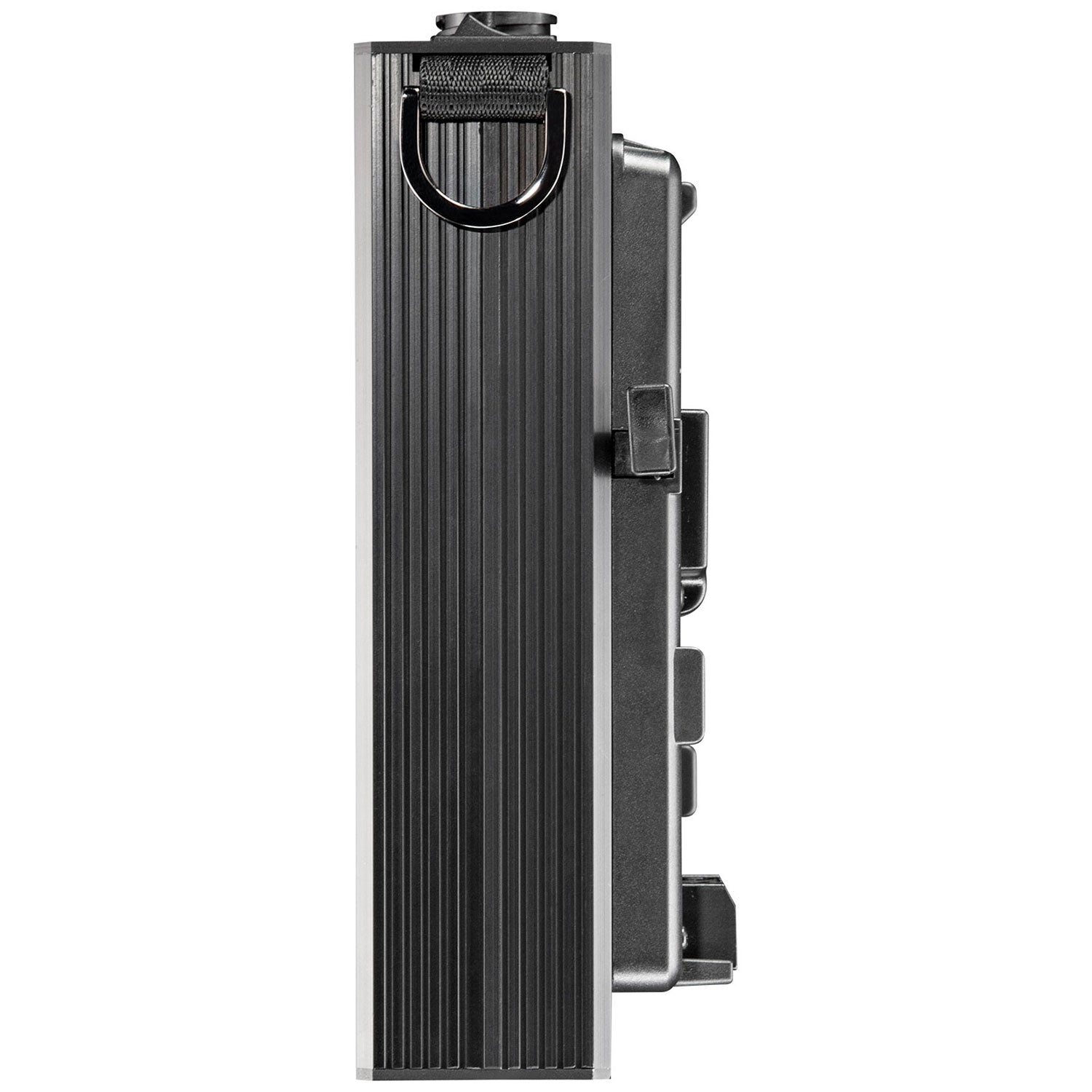

Durable Lightweight Aluminum Enclosure

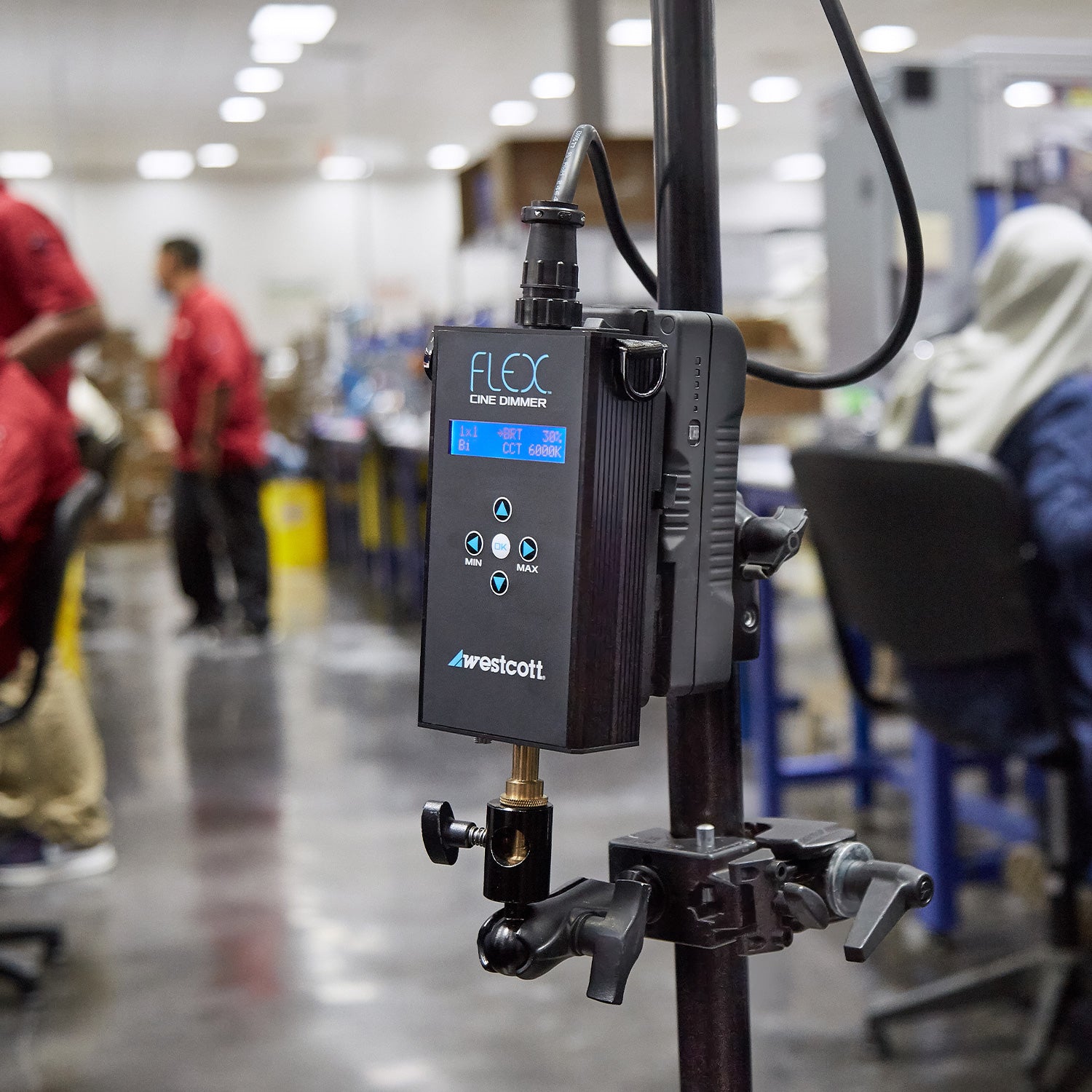

This compact flexible LED dimmer is constructed with a heavy-duty, lightweight aluminum enclosure for secure use and travel. It can be mounted to a stand via the built-in 1/4"-20 thread or hung with the removable d-ring shoulder strap.

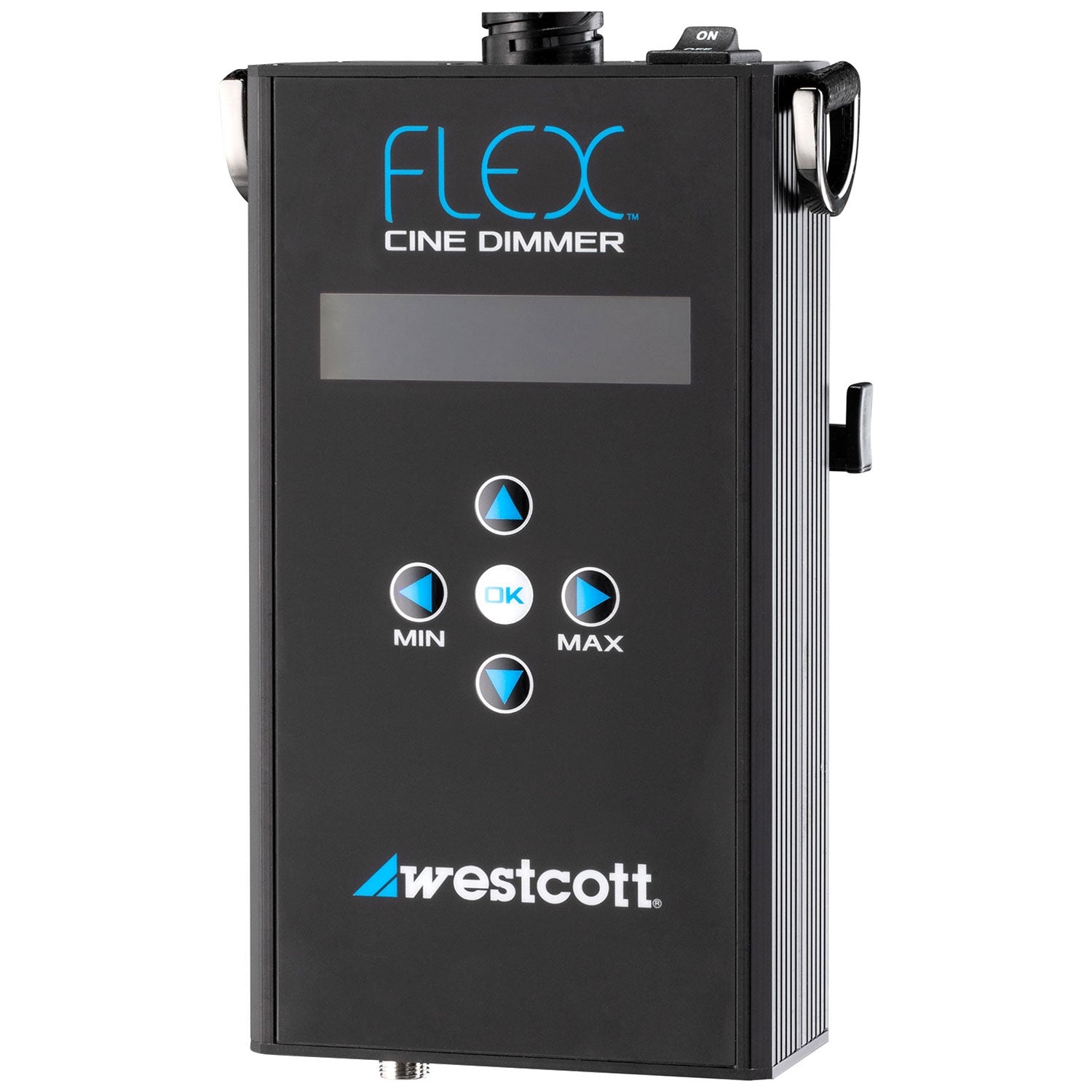

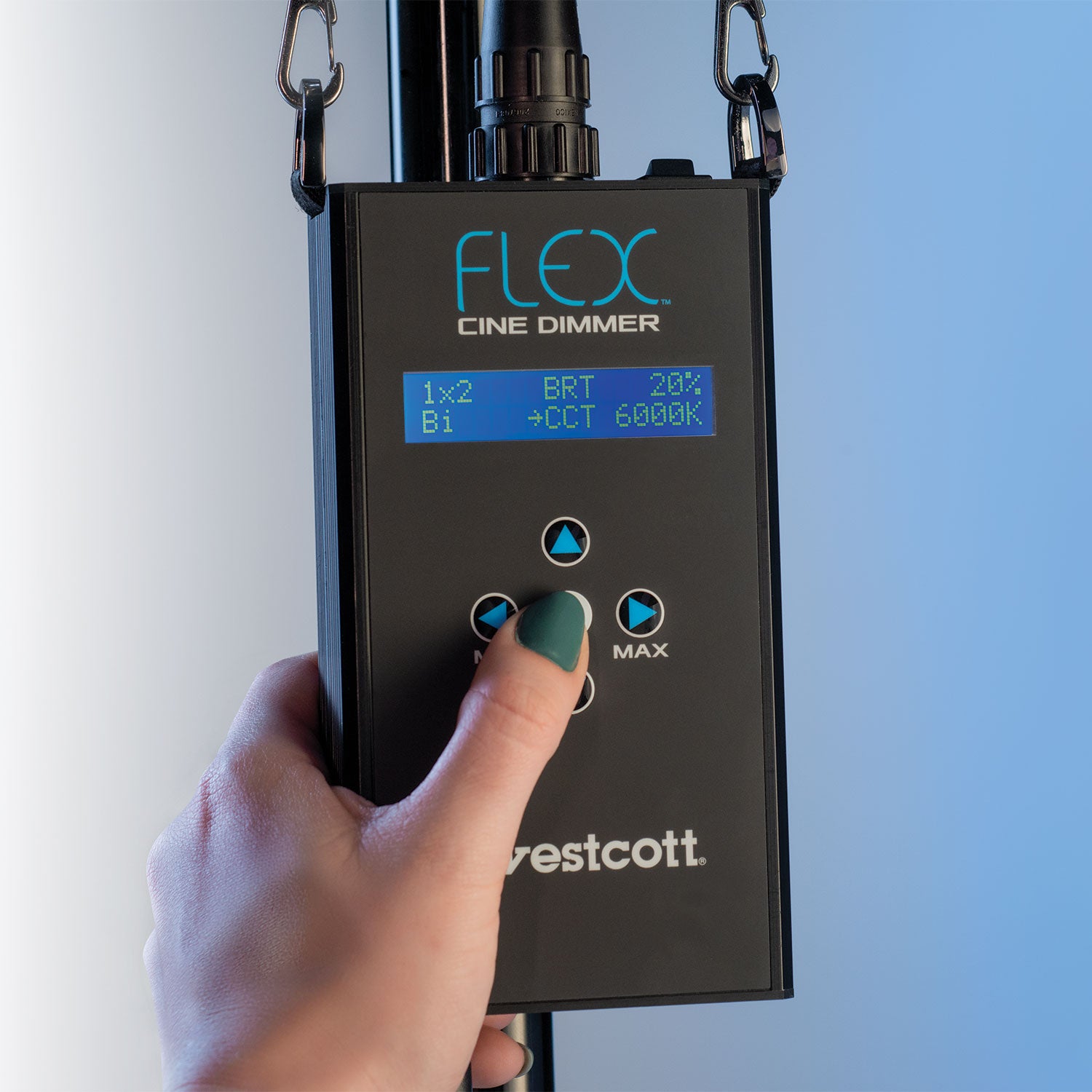

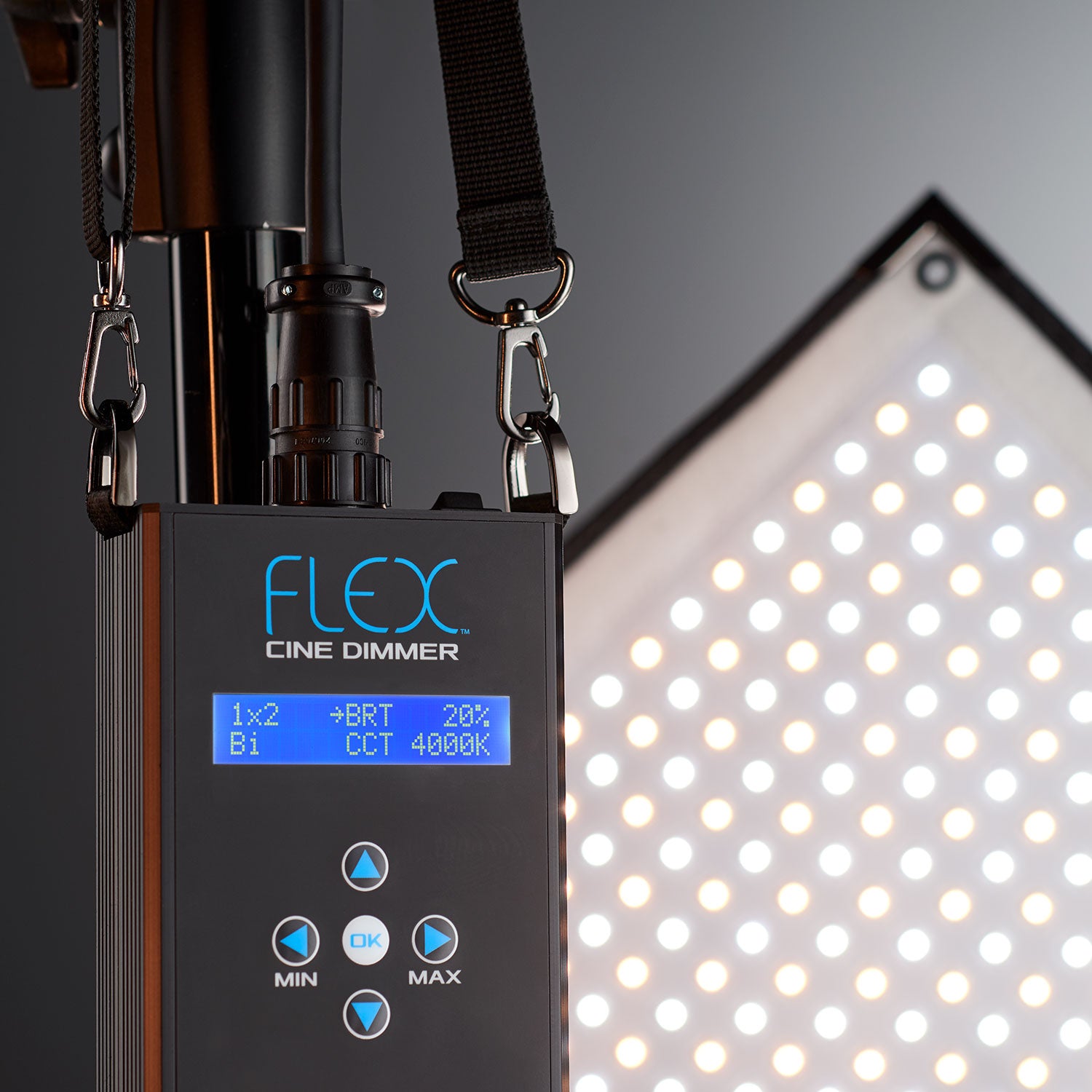

Intuitive Light Controls

The Flex Cine Dimmer offers on-board controls for adjusting light intensity from 0-100% output. When paired with flexible bi-color LED mats, the dimmer adjusts color temperature from 2800-6000K and offers 4 convenient customizable presets.

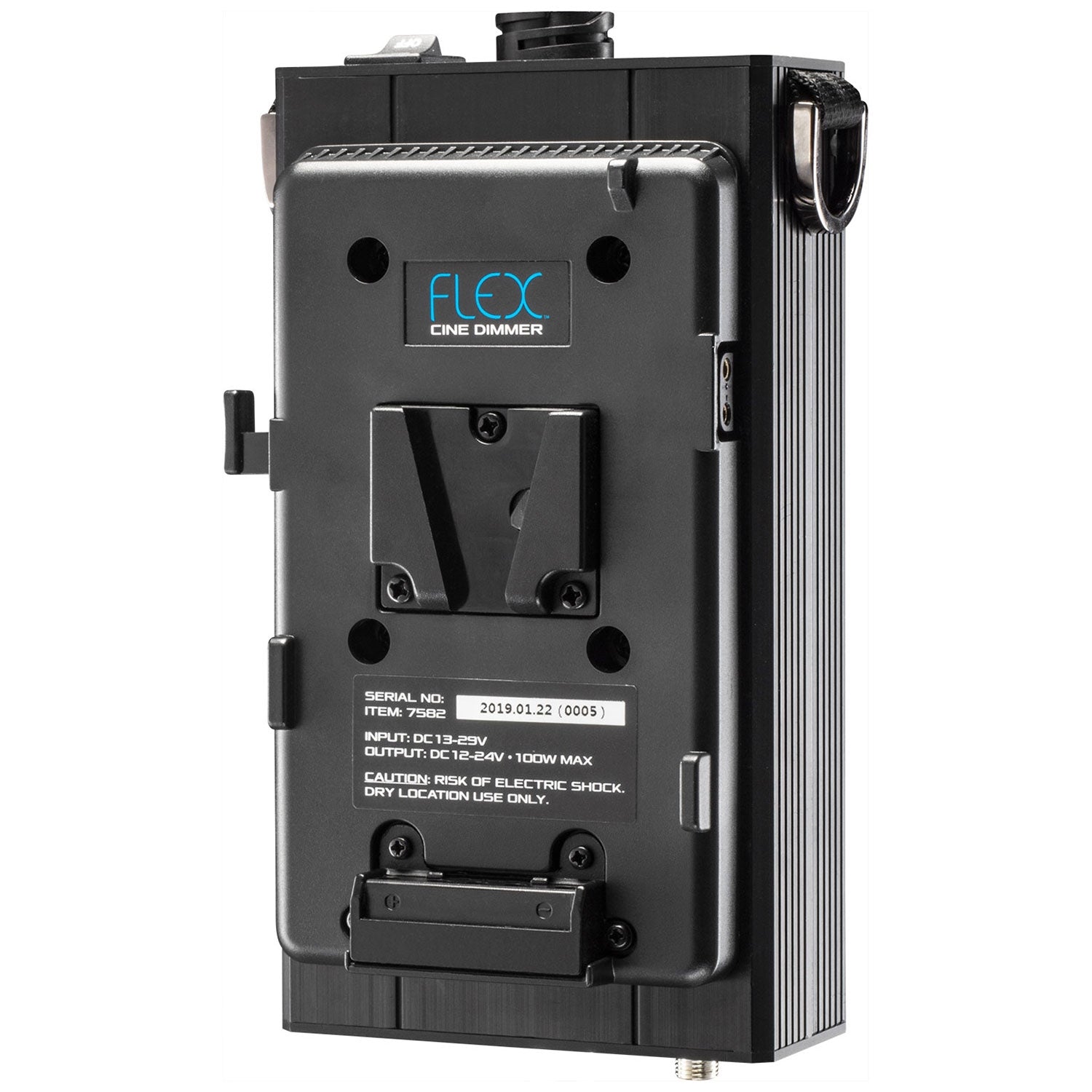

AC/DC, V-Mount, and D-Tap Power Options

This dimmer can be powered with the included in-line AC Adapter, Flex Cine Wireless DMX Dimmer AC Adapter, 14.4-26V V-mount battery, or D-Tap battery via D-Tap to D-Tap cable.

Smart Firmware Detects Attached Mat

Mat Sensing Technology detects which Flex LED mat is connected to the dimmer, specifies the required voltage, and customizes the available dimmer controls. A built-in USB-C port allows for future firmware updates.

In The Box:

• 1 × Flex Cine Dimmer
• 1 × Flex Power Adapter
• 1 × Westcott Power Cord

Dimmer

Input Voltage

DC 14.4-26V

Output Voltage

DC 12-24V

DMX Capable

No

USB Capabilities

Data in

Electrical

Power Type

AC

Amps

5A

Battery Type

14.4/14.8V & 26V V-Mount Li-Ion Battery

Battery Mount

V-Mount, D-Tap

Operating Temp.

14-113°F (-10-45℃)

General

Package Qty.

1

Product Dimensions

7.3 × 3.7 × 2.5 in. (18.5 × 9.3 × 6.4 cm)

Packed/Folded Size

14.0 × 10.0 × 3.3 in. (35.6 × 25.4 × 8.4 cm)

Item Weight

1.7 lbs. (0.8 kg)

Materials

Aluminum, Electrical Components
