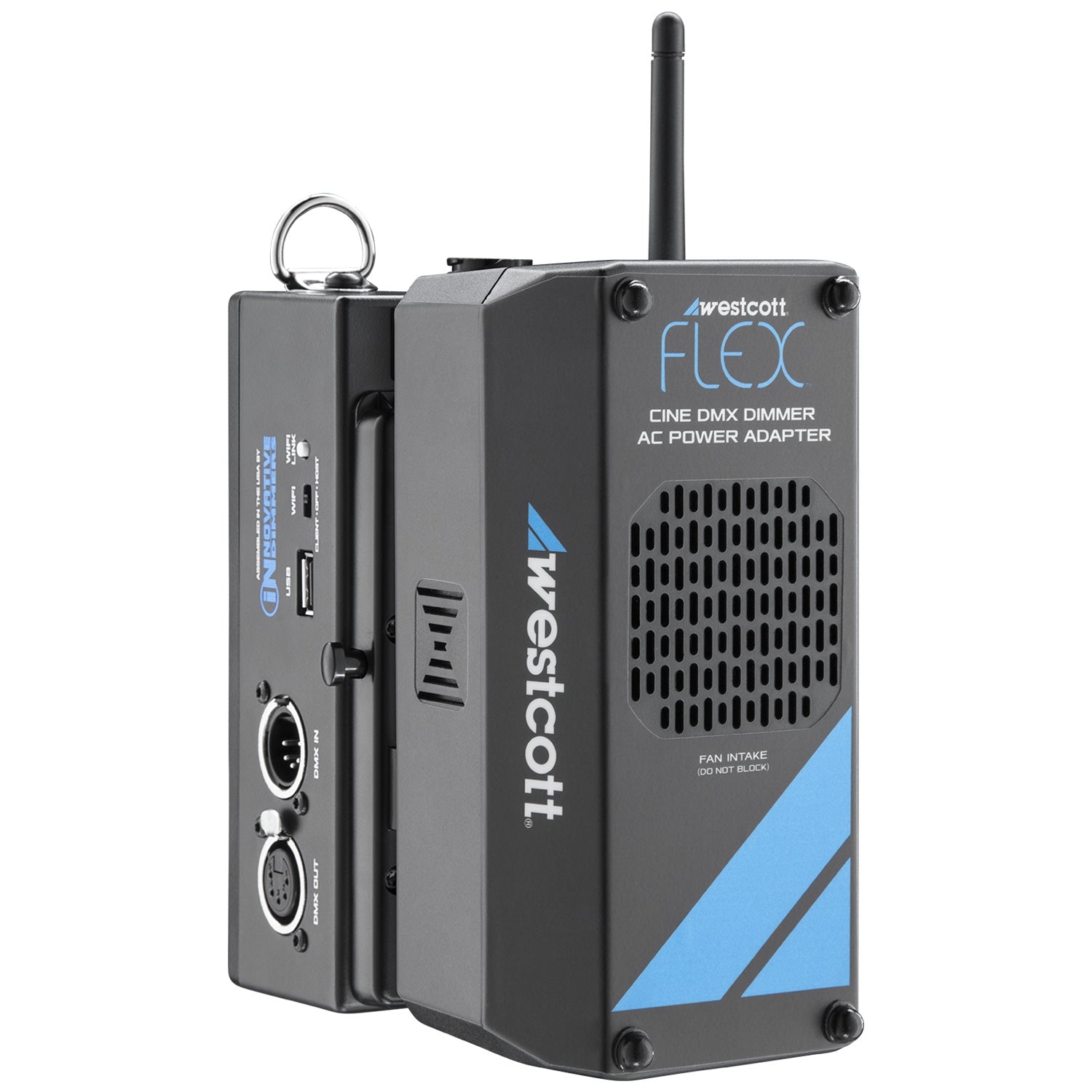

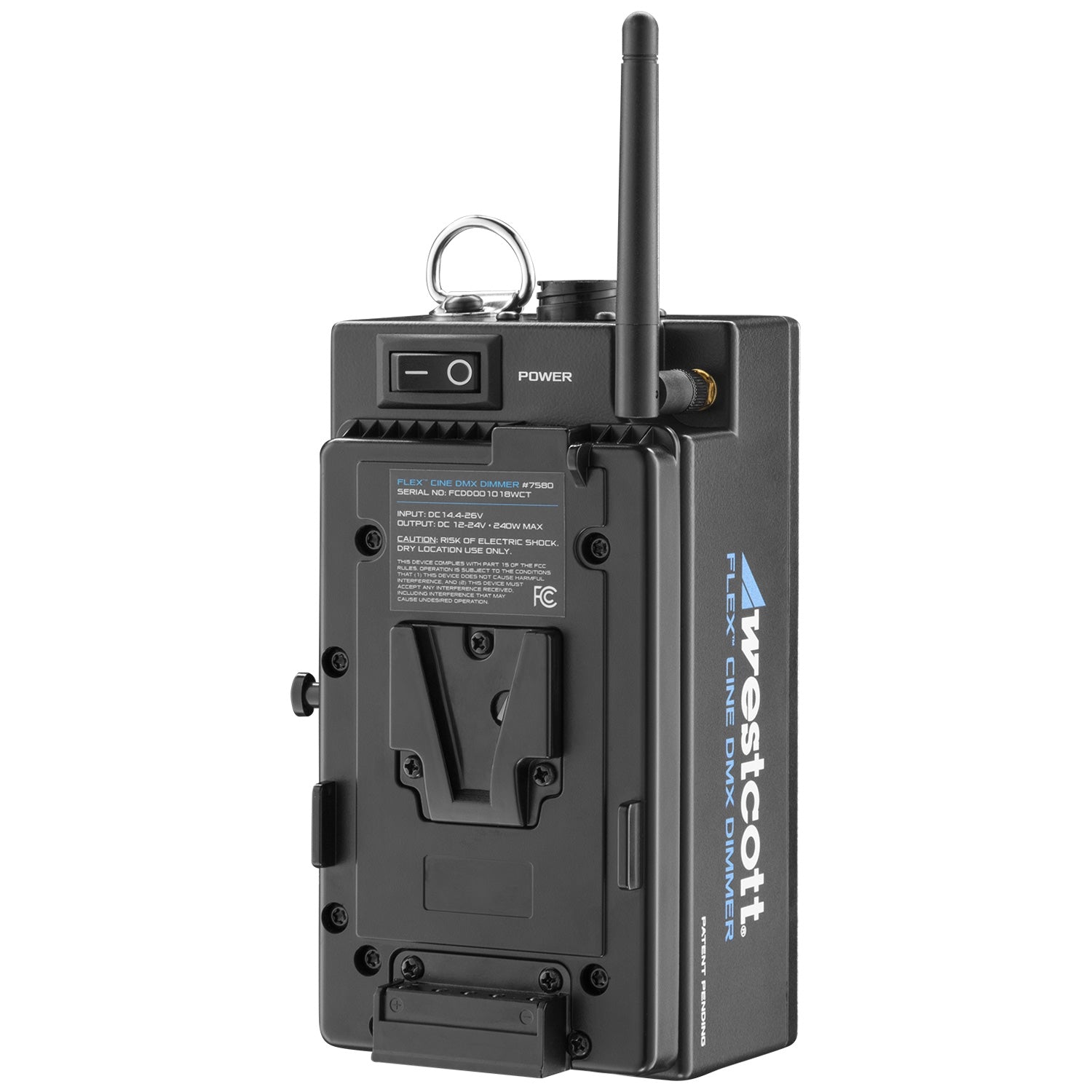

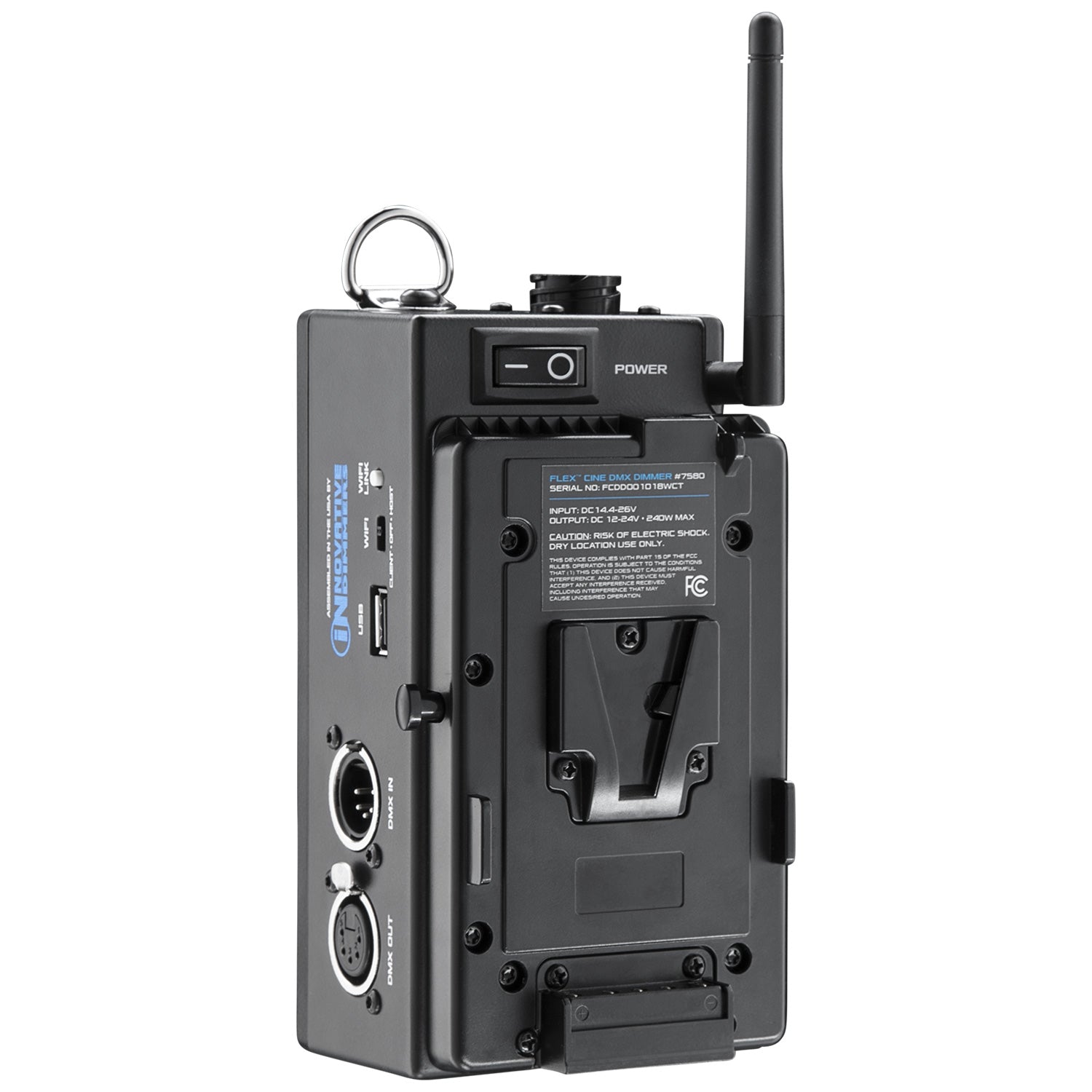

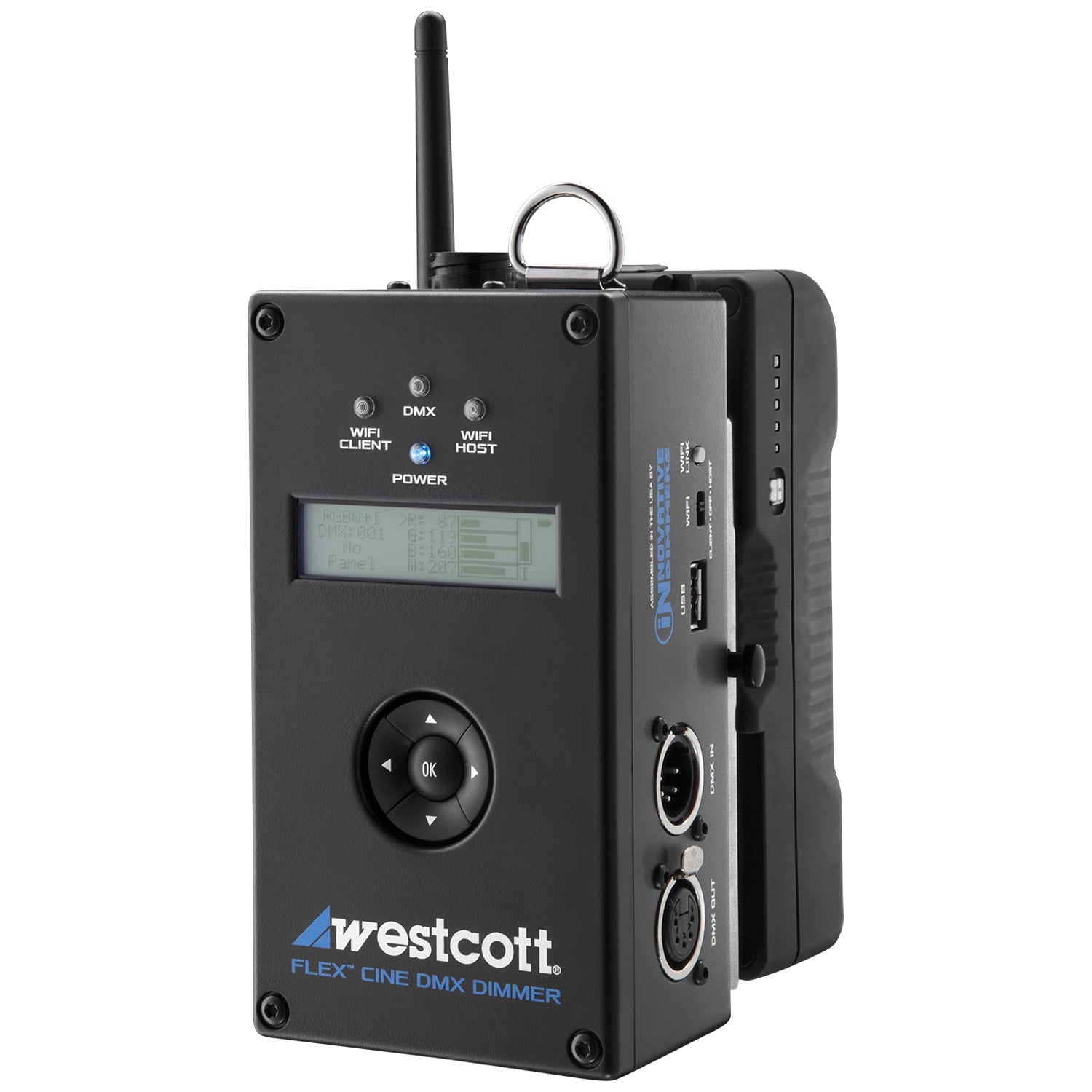

Flex Cine Wireless DMX Dimmer
- The first smart control unit for Flex LED mats
- Made in partnership with Ratpac/Innovative Dimmers
- Wireless DMX capability providing DMX over Art-Net
- DMX512 Input/Output via 5-pin Male/Female XLR

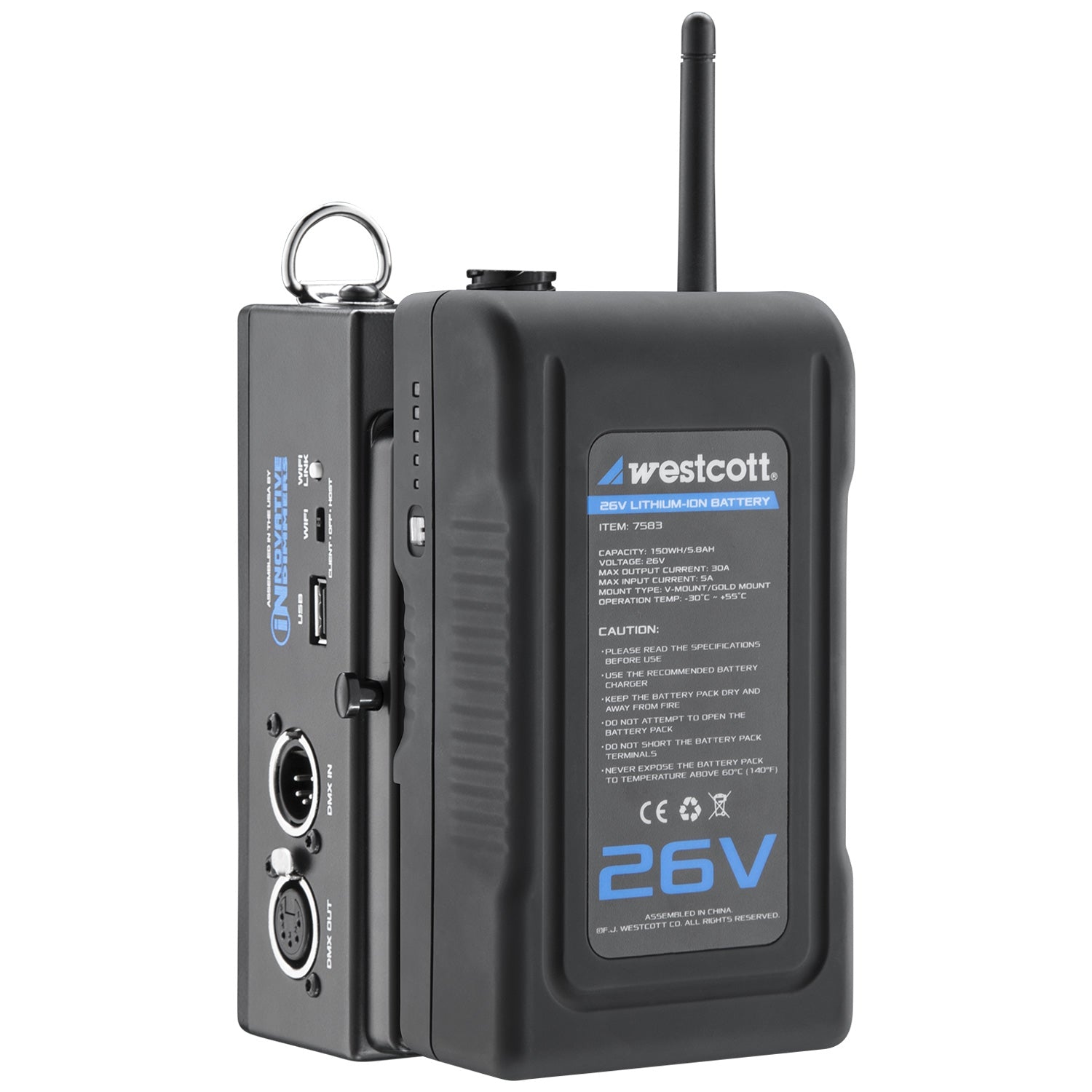

- V-mount accepts power via AC Adapter or DC battery
- Pre-loaded with source-matching and 120+ color gel presets
- Ability to store user-defined presets
- Compatible with Luminair app for wireless control and advanced effects
- Hybrid Pulse Width Modulation for dimming to 1% without flicker up to 960fps
- Mat Sensing Technology for customized controls and powering
- User-replaceable WiFi antenna
- USB port for firmware upgrades
- Works with all Flex Cine mats using a compatible power source
- Designed and assembled in the USA
In The Box:
- 1 × Flex Cine Wireless DMX Dimmer

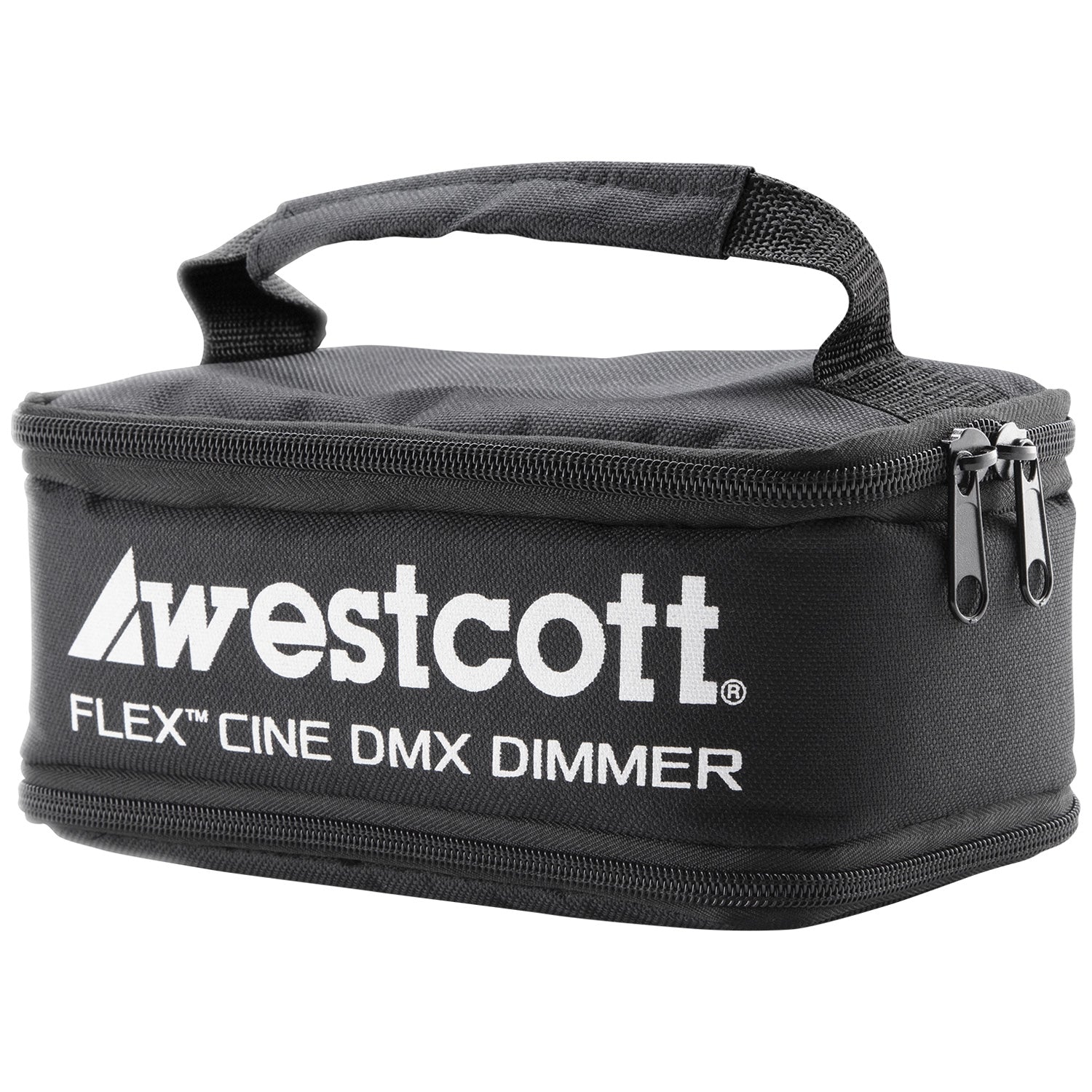

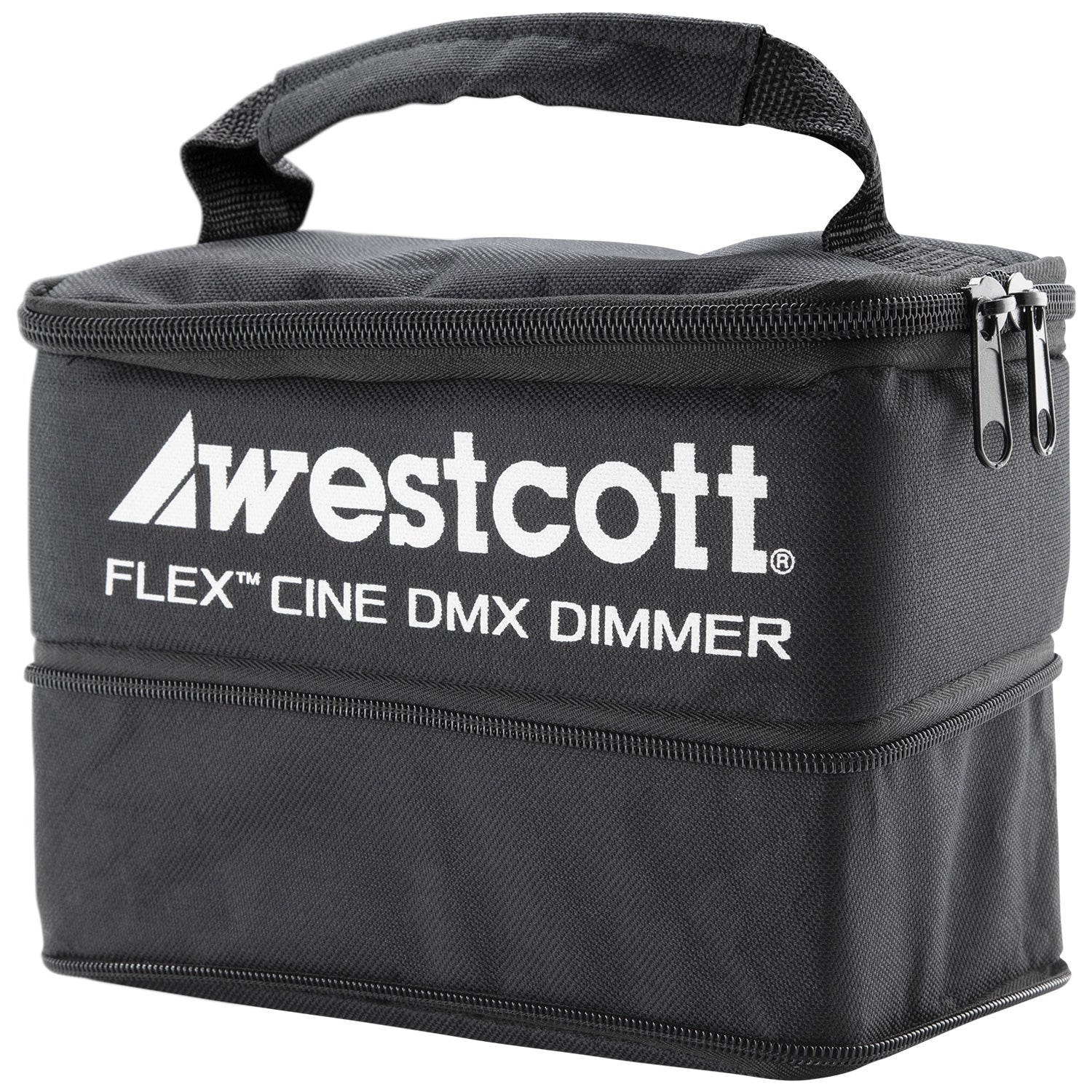

- 1 × Flex Cine Dimmer Case
- 1 × Flex Cine Wireless DMX Dimmer Lanyard
Dimmer
- Input Voltage
- 14.4-26V DC
- Output Voltage
- 12-24V DC
- DMX Capable
- Yes
- USB Capabilities
- Firmware
- Dimmer Cooling
- Passive
- Dimmer Case Included
- Yes
Electrical
- Power Type
- AC/DC
- Certifications
- CE
- Plug Type
- Type B (US)
- Battery Mount
- V-Mount
- Operating Temp.
- 140°F/60°C (Max.)
General
- Package Qty.
- 1
- Product Dimensions
- 6.8 × 3.8 × 3.3 in. (17.1 × 9.5 × 8.3 cm)
- Use & Care Instructions
